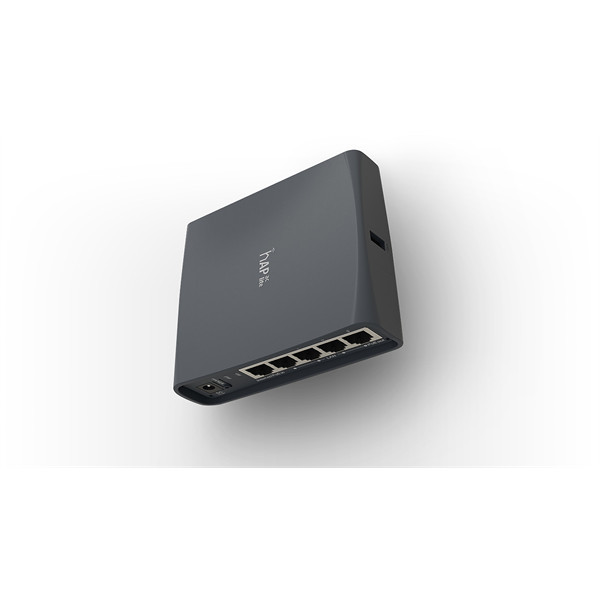

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

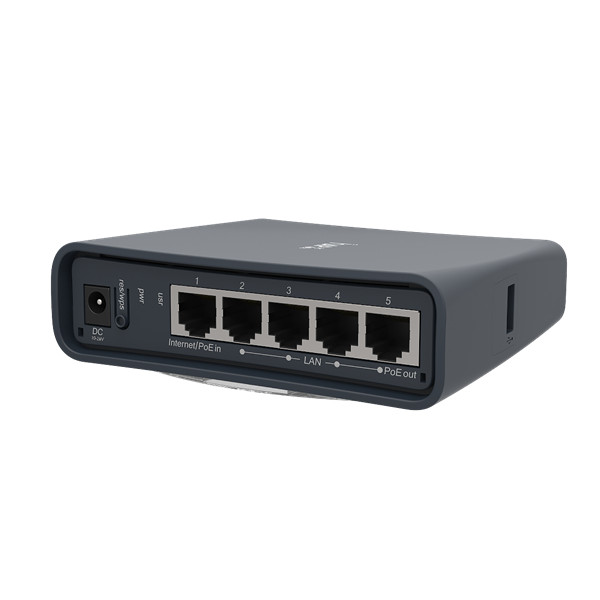

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

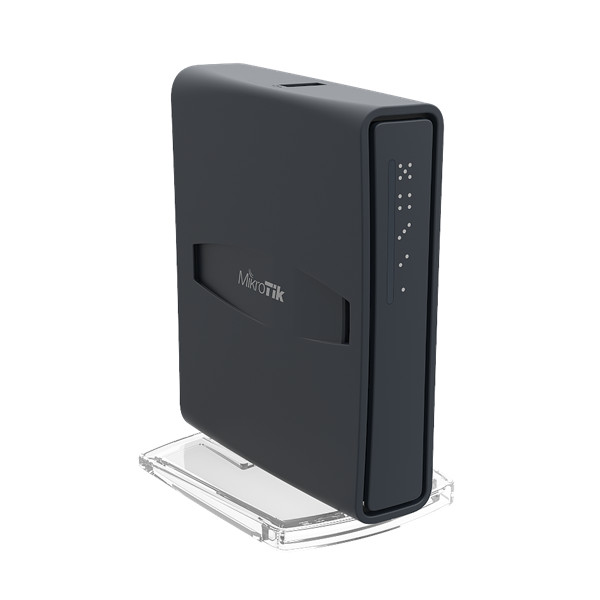

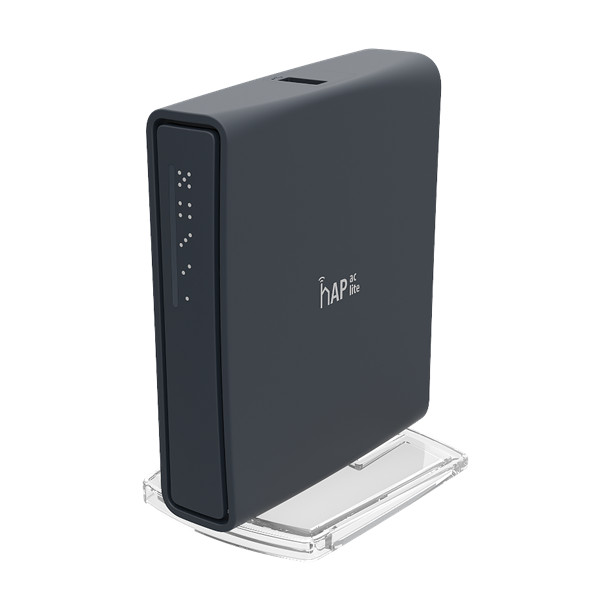

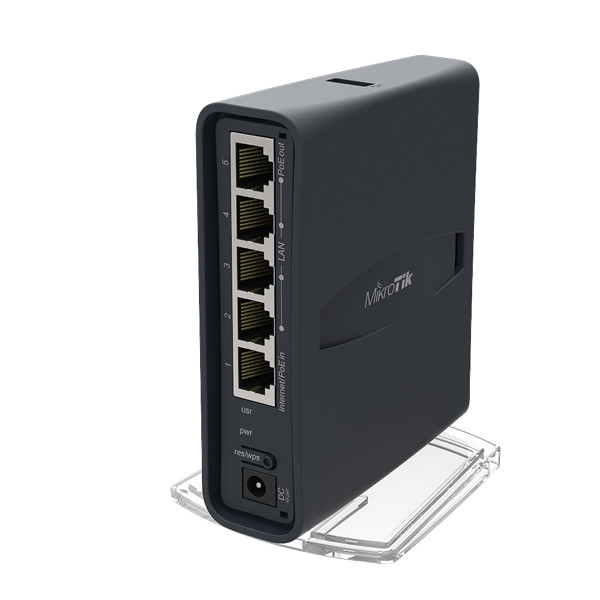

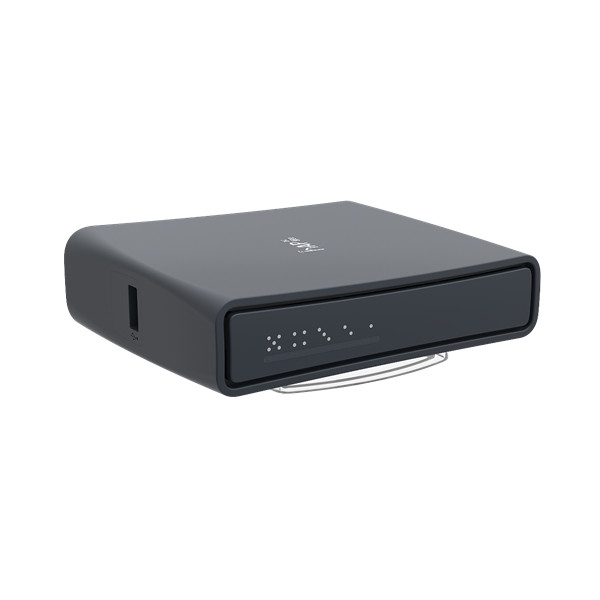

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available - RB952Ui-5ac2nD-TC (International) and RB952Ui-5ac2nD-TC-US (USA). RB952Ui-5ac2nD-TC-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz - 5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RB952Ui-5ac2nD-TC |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
34 x 119 x 98mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-30°C to 70°C |
| |
|
Wireless capabilities
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
433 Mbit/s |
| Wireless 5 GHz number of chains |
1 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9887 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| AC speed |
AC750 |
Ethernet
| Details |
| 10/100 Ethernet ports |
5 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
